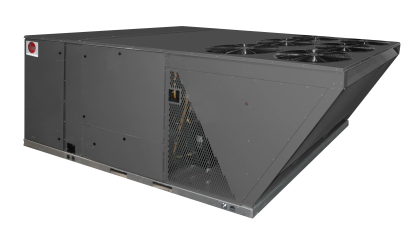

Rheem RJNL-B120DL040 Heat Pumps
R-410A HFC refrigerant.
Complete factory charged, wired and run tested.
Scroll compressors with internal line break overload and high-pressure protection.
Convertible airflow.
TXV refrigerant metering system.
High Pressure and Low Pressure/Loss of charge protection standard on all models.
Solid Core liquid line filter drier.
Cooling operation up to 125 degree F ambient.
Foil faced insulation encapsulated throughout entire unit minimizes airborne fibers from the air stream.
Hinged major access door with heavy-duty gasketing, 1/4 turn latches and door retainers.
Slide Out Indoor fan assembly for added service convenience.
Powder Paint Finish meets ASTMB117 steel coated on each side for maximum protection. G90 galvanized.
One piece top cover and one piece base pan with drawn supply and return opening for superior water management.
Forkable base rails for easy handling and lifting.
Single point electrical connections.
Internally sloped slide out condensate pan conforms to ASHRAE 62 standards.
High performance belt drive motor with variable pitch pulleys and quick adjust belt system.
Permanently lubricated evaporator, condenser and gas heat inducer motors.
Condenser motors are internally protected, totally enclosed with shaft down design.
2 inch filter standard with slide out design.
24 volt control system with resettable circuit breakers.
Colored and labeled wiring.
Copper tube/Aluminum Fin coils.
Supplemental electric heat provides 100% efficient heating.
