Variable frequency drives are a hot topic. Advancements in VFD technology and reductions in price are driving rapid market adoption. Dramatic energy savings can deliver a payback period measured in months, and VFDs enable precise motor control in many industrial process applications.
But VFDs are also hot in the literal sense: the advanced electronics pack more semiconductor components into a smaller form factor resulting in more intense heat generation. Elevated temperatures degrade performance, impair operational reliability and shorten service life.
Variety of cooling methods
A variety of cooling methods have proven effective, including passive air cooling with fans and heat exchangers, and active cooling with air conditioning and water cooling. Unfortunately, determining the cooling load can be a bit confusing. Calculations are needlessly complicated by a mismatch of systems of measurement. Imperial units (HP, BTU, CFM) are mixed with metric units (watt), and the conversion gets lost in translation.
Therefore, Pfannenberg has developed simple rule-of-thumb guides for selecting and sizing VFD cooling solutions.
Protective enclosures cause overheating

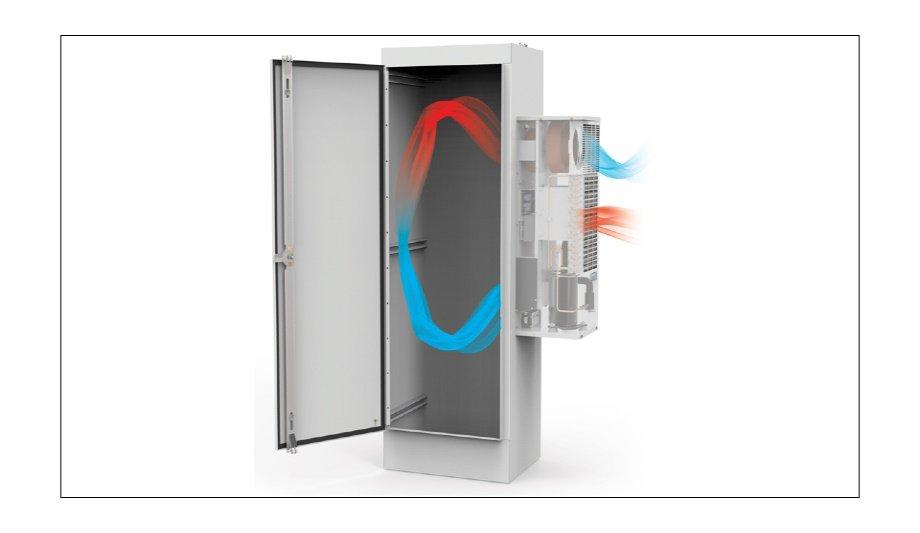

The basic challenge of VFD cooling comes from the fact that VFDs usually need to be placed in an enclosure to protect them from the immediate environment, and paradoxically, these enclosures trap heat which necessitates protection from overheating.
Basic NEMA 12-type enclosures are often specified to protect against common hazards
Basic NEMA 12-type enclosures are often specified to protect against common hazards such as settling dust, dripping water, and condensation of non-corrosive liquids. Increasingly, advanced technologies in new VFDs such as fiber optics require enclosures with more enhanced levels of protection.
And with the wide-scale adoption of VFD technology, many applications require enclosures specially designed for challenging environments, from weather and impact-resistant outdoor enclosures to tightly-sealed stainless steel enclosures for food production facilities that must withstand hose-down cleaning. As an enclosure becomes more sealed it naturally starts to hold in more heat, due to the decrease in passive dissipation, thus creating a larger cooling challenge.
Interior of VFDs
The size of the enclosure also matters a great deal. Typical enclosure dimensions have been dramatically scaled down in recent years, to fit in tighter spaces and to economize on the cost of the enclosure. In a large box—imagine a space the size of a room—the difference in temperature between the floor area and the ceiling area causes a slight airflow called natural convection. The smaller the space, the fewer objects are able to benefit from this cooling effect. Without adequate airflow, a phenomenon known as “hot spots” is more likely to develop on the surface and in the interior of VFDs, wreaking havoc on sensitive electronics.
The smaller form factor of VFDs and their enclosures contribute to overheating in another way: a smaller box means that less surface area on the exterior is available to transmit heat to the surrounding air. All of these factors necessitate effective and reliable cooling solutions.
Rapid Adoption of VFDs
In the US, an estimated 40 million motors consume 60-65% of all electrical energy
But first, let's step back from the box and consider the big picture. The energy efficiency of VFDs is not just good for individual businesses, it is also key to addressing climate change.
Worldwide, about a quarter of all electrical energy is used to supply motors in industrial applications. In the U.S., an estimated 40 million motors consume 60-65% of all electrical energy. Three-quarters of these motors are a variable-torque fan, pump, and compressor loads, the types of applications ripe for the energy efficiency afforded by VFDs.
Variable frequency drive market
Only about 3% of AC motors are currently controlled by VFDs, but about 30-40% of new motors installed each year have a VFD. According to a 2021 report by Research Dive, the global variable frequency drive market is estimated to grow at nearly 5% annually to $25 billion in 2027.
The energy savings are dramatic. VFDs reduce energy consumption by enabling electric motors to operate at less than full speed. Basic AC induction motors are designed to run at a constant speed, but in actual use, speed requirements fluctuate, with full speed typically employed only about 10% of the time. The inherent inefficiency is obvious, analogous to running a car engine with the tachometer showing the engine constantly at its maximum speed.
VFD electronics
The electrical power drawn is proportional to the cube of the rotational speed
The energy savings can be calculated using the Laws of Affinity: the electrical power drawn is proportional to the cube of the rotational speed. Therefore, slowing a pump or fan to 75% speed reduces energy consumption by nearly 60%, and 50% speed saves almost 90%.
From these efficiency gains, it is necessary to subtract the relatively minimal energy waste of about 3% due to heat loss from the VFD. This heat loss from the VFD is important to quantify, not for its financial impact, which is minimal compared to the overall efficiency gains of utilizing the technology, but rather for the danger that overheating poses to the VFD electronics if the heat trapped in the enclosure is allowed to exceed acceptable temperature limits.
Passive cooling
There are two different types of cooling, the first being passive cooling and the second being active cooling, both types utilize The Second Law of Thermodynamics which in simple terms is that energy goes from a higher source to a lower source.
Passive cooling utilizes the natural path of heat transfer with the heat going from the higher temperature source to the lower temperature source. A good example of this is filterfans, filterfans move the colder ambient air into and through an enclosure where that air absorbs heat until it is exhausted and the heat dissipates into the environment.
Active cooling
Active cooling requires a source of energy to be put into the system in order to create a path for heat to transfer. This is commonly done with the use of a vapor compression cycle, a vapor compression cycle has four major parts, a compressor, a condenser, a throttling device, and an evaporator.
The refrigerant passes through a throttling device where its pressure and temperature drop
The cycle starts with the compressor where energy is put into the system, refrigerant enters the compressor under low pressure and low temperature where it is compressed which causes the refrigerant to leave the compressor under high pressure and high temperature. Next, the refrigerant travels through the condenser where heat is removed causing the refrigerant to become a saturated or subcooled liquid.
Then the refrigerant passes through a throttling device where its pressure and temperature drop. Finally, the refrigerant passes through the evaporator where heat is absorbed turning it into lower-pressure and low-temperature gas, where the cycle can then repeat.
When to choose passive cooling and when to choose active
Deciding when to use passive and when to use active is fairly simple. If your ambient temperature is lower than your target enclosure temperature or you have a source of passively chilled water, then a passive cooling unit can be used which is desirable for energy savings.
Passive cooling uses significantly less energy than active cooling, as passive cooling does not require energy to be put into the system to allow a path for heat transfer. If your ambient temperature is higher than your target enclosure temperature or you do not have a source of passively chilled water, then an active unit has to be used.
Simple way to calculate cooling requirements
Here is a simple way to calculate cooling requirements for both active cooling and passive cooling methods.
Active Cooling Rule of Thumb
The rule of thumb for air conditioning and water cooling: is 75 BTU/h is required for every 1 HP
VFDs are typically sized in horsepower (HP) and cooling systems are measured in British Thermal Units (BTU, or BTU/h for BTU hours). But how do you convert from HP to BTU/h?
Here is the rule of thumb for air conditioning and water cooling: 75 BTU/h is required for every 1 HP. In other words, for a 100 HP VFD drive, 7500 BTU/h of cooling is required.
This rule of thumb is derived as follows:
- 3% of the electrical energy in a VFD is converted to heat
- 1 HP = 746 watts
- 746 watts x 3% heat loss = 22 watts of heat loss per 1 HP
- 1 watt = 3.4 Btu/h
- 22 watts x 3.4 BTU/h = 75 BTU/h per 1 HP
Passive Cooling Rule of Thumb
For passive cooling solutions, such as the Pfannenberg Datawind Filterfan®, the rule of thumb is 4 CFM is required for every 1 HP to maintain 10°C above ambient in the enclosure. In other words, for a 100 HP drive, 100 CFM is required. This rule of thumb is derived from the following equation:
1 CFM = 1.82 × watts of heat loss/Δ Temp (°C)
These rule-of-thumb guides provide a general guide for selecting a cooling method and for sizing the cooling load requirements. For more precise calculations that account for ambient temperature and humidity and other critical considerations, we provide Pfannenberg Sizing Software at no charge. By simplifying the calculation of cooling requirements, we hope that the adoption of VFD technology will continue to grow rapidly and that users will benefit from maximum performance and service life.
