Heat pumps are quickly overtaking traditional heating systems in American homes, as they are more efficient and environmentally friendly. But without a proper control system, they could spike a homeowner’s electricity bills.
Purdue University researchers have demonstrated a novel predictive control system for heat pumps, which has the potential to reduce electricity usage by about 20% and save homeowners an average of $300 every year.
Novel predictive control system for heat pumps
“A heat pump is just an air conditioner in reverse - using electricity to remove heat from the outside and transfer it inside,” said Kevin Kircher, Assistant Professor of Mechanical Engineering at Purdue University and an acknowledged expert on heat pumps and home electrification.
He adds, “Using electricity in this way is far more efficient than the heating systems in most of our homes, with the added benefit of burning less fossil fuel.”
Cost and Comfort
One of the biggest issues to the adoption of heat pumps is the perceived cost
One of the biggest issues to the adoption of heat pumps is the perceived cost, both of the equipment itself and its continued operation. “Heat pumps can increase electricity demand,” said Elias Pergantis, a Ph.D. student co-advised by Kircher and Davide Ziviani, adding “What we wanted to find out is how we can use machine learning and predictive control to reduce the energy required but still maintain the same level of human comfort.”

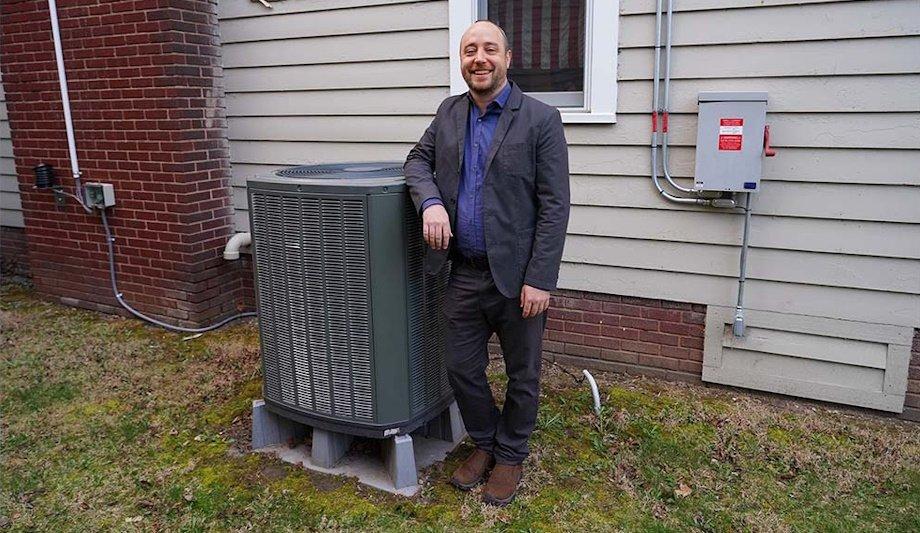

Purdue has a unique living laboratory to test their theories. The DC Nanogrid House is a 1920s-era West Lafayette, Indiana, home retrofitted with solar panels, batteries, electric appliances, electric heat pumps, and a bevy of sensors in every room. Graduate students live at the house, serving as test subjects for researching human comfort and new smart home technologies.
‘Smart’ thermostats
“Most people adjust the temperature in their home by manually operating a thermostat - they feel cold, so they push the button to make the temperature go up,” said Elias Pergantis, adding “But when they do that, they don’t take into account the predicted solar radiation, the humidity, the forecasted temperature that day, or which rooms they’re going to occupy in the house, and for how long.”
Elias Pergantis continues, “As a result, most of the time they end up overheating their house and wasting energy. Even the best ‘smart’ thermostats don’t incorporate all this information.”
DC Nanogrid House
The DC Nanogrid House has a plethora of sensor data on the temperature of the house
Thankfully for Pergantis, the DC Nanogrid House has a plethora of sensor data on the temperature of the house, historic climate data, and which parts of the house are occupied when. So Pergantis used this data to build a model for predictive control using machine learning, which he could then verify based on actual conditions observed at the house.
Then it was time for an experiment. “We implemented the algorithm in the middle of winter,” said Elias Pergantis, adding “Basically for a month and a half, the algorithm predicted when the house would need heating, in which rooms, and how many kilowatts it would take. The human occupants could adjust set points, but for the most part, the computer took charge of the thermostat.”
40-day test of the model predictive control system
The results were striking. During the 40-day test of the model predictive control system, the house consumed 19% less energy than a comparable stretch from a previous winter. In dollar terms, that’s a $300 energy savings for just one household. Extrapolated to all US households, that’s a total savings of more than $22 billion every year.
And what about the comfort of the home’s occupants? How do you scientifically gauge whether people ‘felt’ cold throughout the experiment?
Two methods of quantifying comfort
“We have two methods of quantifying comfort,” said Kevin Kircher, adding “One uses a complex mathematical formula to estimate when typical subjects would feel discomfort; the other involves quick digital surveys of the occupants, which we conduct before, during, and after the experiment.”
He continues, “Both methods showed a near equal amount of time that the occupants ‘felt’ cold, both during the model predictive control experiment, and during normal operation. In short, our occupants had the same level of comfort with model predictive control, but with much less energy being used.”
Their research has been published in Applied Energy.
More Benefits
“This approach has many other side benefits,” said Elias Pergantis, adding “As we increase our demands on the electricity grid, having predictive control like this can help reduce the chances of spikes or brownouts. And this also has the chance to help low-income families, for whom utility bills can be a huge burden; reducing their electricity bill by $300 or more per year can really help to lift that burden.”
The results also suggest a change in the way people think about heating and cooling homes
The results also suggest a change in the way people think about heating and cooling homes.
“We’ve demonstrated that a data-rich predictive control system can save electricity, with no impact on human comfort,” said Kevin Kircher, adding, “What we envision is a thermostat that doesn’t use degrees, but operates in modes, like your car. In ‘Eco’ mode, you reduce the operation time, but save huge amounts of energy. In ‘Performance’ mode, you can blast the heat for a short period of time before returning to normal.”
Advancing the technologies of smart homes
The DC Nanogrid House is one of the multiple initiatives of the Center for High Performance Buildings, a Purdue organization dedicated to partnering with industry and academia to advance the technologies of smart homes and high-performance buildings.
Purdue hosts the largest academic HVAC lab in the world at Herrick Labs, including a unique building-within-a-building facility that tests smart home technologies and their impact on human comfort.
Data is the key
“Data is the key,” said Kevin Kircher, adding “Based on just one month of data, we could build a relatively simple model for predictive heating, which demonstrated tangible energy savings in a real-world home. Imagine expanding that technology to a neighborhood, a city, or the entire country.”
