District cooling stations, high-rise building cold supply, or data center cooling - gasketed plate heat exchangers for these applications require peak performance in terms of heat transfer whilst withstanding high system pressure.

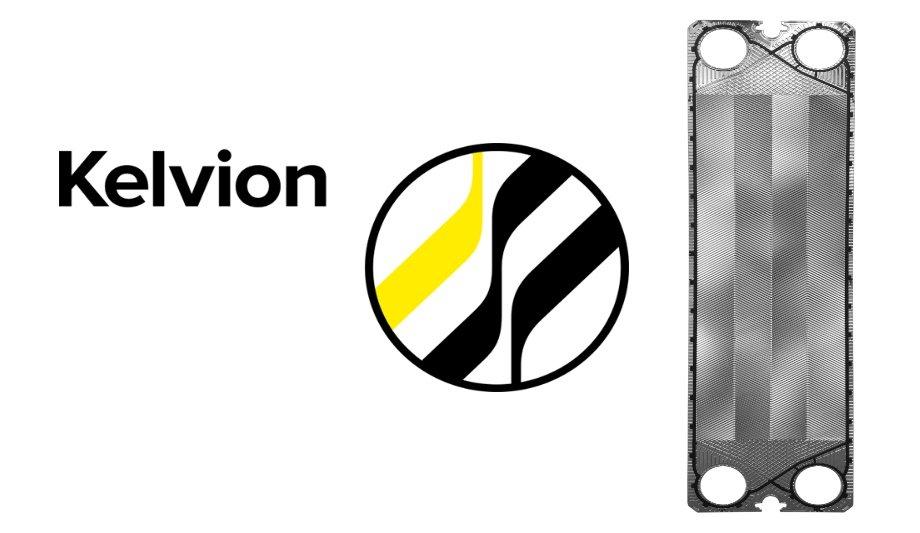

The new Kelvion plate size NP250L is tailored to meet these requirements, thanks to an extremely narrow plate gap and a smaller pitch.

Features

The attributes ensure highly turbulent flow and in turn, a good heat transfer at very small temperature differences with a single pass approach. This reduces piping costs and simplifies service. NP250L covers larger performance requirements with a maximum flowrate

With the new NP250L, the NP plate series now comprises two different sizes with connection diameters up to DN 250. The NP250L covers larger performance requirements with a maximum flowrate greater than 1000m³/h (4600 USGPM).

Design

The proven OptiWave design enhances this effect by providing a highly uniform flow across the entire plate width. The new heat exchanger plate is able to achieve higher NTU values than the sister models of the NT and NX series. These measures increase efficiency and overall performance.

The new Kelvion NP250L plate heat exchanger is available in plate material 1.4301 and 1.4404 (US: AISI304 and AISI316L), as well as in the thicknesses 0.4, 0.5, and 0.6mm. - It is suitable for a test pressure greater than 40 bar (g).

Fitting and Applications Compatibility

The new NP250L plate extends Kelvion’s NP Series concerning the size diversity for applications with extremely narrow temperature profiles, the requirement of high NTU values, and the need for high-pressure resistance.

The NP250L fits into the same frames as the equally sized Kelvion plates of the NT, NX, NH, and LWC series. The new NP series also has advantages in common with these, such as the EcoLoc system for a perfect fit of the glueless gaskets or the PosLoc design, which ensures precise alignment of the plate pack.
